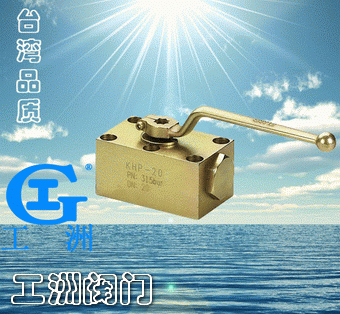

KHP(PKH)系列板式球阀
图形符号
型号说明
①系列代号：KHP（PKH）系列板式球阀
②公称通径：6、10、16、20、25、32、40、50mm
③阀体材料：1-钢
④球体材料：1-钢、2-黄铜
⑤工作温度：1、-25～＋100℃ 2、-30～＋170℃
⑥其他密封：2-丁晴橡胶、4-氟橡胶
⑦ 手柄形式：01-铝质直柄02-铝质曲柄03-铸锌直柄04-铸锌曲柄05-钢质直柄06-钢质曲柄09-不带手柄
⑧设计序号：由生产商定

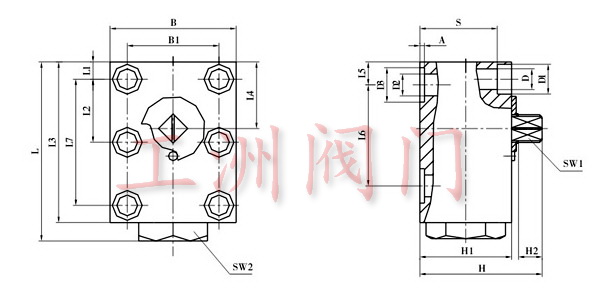

外形尺寸
尺寸表
|
简略型号 |
DN |
LW |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
B |
B1 |
|
KHP-06 |
06 |
06 |
64 |
8.5 |
17.5 |
59 |
25 |
8.5 |
35 |
35 |
40 |
27 |
|
KHP-10 |
10 |
9.5 |
77 |
7.5 |
27.5 |
70 |
29 |
10 |
44 |
55 |
55 |
40 |
|
KHP-16 |
16 |
16 |
110 |
8.5 |
41.5 |
100 |
43 |
17 |
58 |
83 |
60 |
45 |
|
KHP-20 |
20 |
20 |
126 |
10 |
48.5 |
117 |
54 |
20 |
69 |
97 |
70 |
51 |
|
KHP-25 |
25 |
23.5 |
145 |
10 |
57.5 |
135 |
64.5 |
24 |
81 |
115 |
80 |
60 |
|
KHP-32 |
32 |
30 |
177 |
12 |
68 |
165 |
75.5 |
29 |
96 |
136 |
100 |
78 |
|
KHP-40 |
40 |
38 |
200 |
30 |
56 |
185 |
80 |
30 |
112 |
112 |
130 |
95 |
|
KHP-50 |
50 |
48 |
245 |
38 |
68 |
220 |
106 |
38 |
136 |
136 |
149 |
112 |
|
简略型号 |
SW1 |
SW2 |
H |
H1 |
H2 |
D |
D1 |
D2 |
D3 |
A |
S |
O 形圈 |
|
KHP-06 |
09 |
22 |
37.5 |
30 |
7 |
6.6 |
11 |
6 |
11.7 |
1.6 |
23 |
8×2 |
|
KHP-10 |
09 |
30 |
58 |
40 |
8.5 |
9 |
13 |
9.5 |
15 |
2 |
31 |
10×2.6 |
|
KHP-16 |
09 |
41 |
72.5 |
52 |
11 |
9 |
13 |
16 |
25 |
2 |
43 |
20.29×2.62 |
|
KHP-20 |
12 |
41 |
88.5 |
60 |
11 |
10.5 |
16.5 |
20 |
30 |
2.5 |
50 |
23.39×3.53 |
|
KHP-25 |
12 |
46 |
97.5 |
65 |
11 |
10.5 |
17 |
23.5 |
35 |
2.5 |
55 |
28.17×3.53 |
|
KHP-32 |
14 |
55 |
118.5 |
80 |
12 |
13 |
19 |
30 |
40 |
2.5 |
67 |
32.92×3.53 |
|
KHP-40 |
14 |
65 |
118.5 |
93 |
12 |
17 |
25 |
38 |
48 |
3 |
77 |
42×3.5 |
|
KHP-50 |
14 |
／ |
129 |
110 |
12 |
22 |
33 |
48 |
55.4 |
2.9 |
88.5 |
49×3.5 |
|
简略型号 |
内六角螺栓DIN912 |
扭距 Nm（摩擦系数μ=0.14时） |
|
KHP-06 |
M6-10.9 |
13 |
|
KHP-10 |
M8-10.9 |
30 |
|
KHP-16 |
M8-12.9 |
35 |
|
KHP-20 |
M8-12.9 |
60 |
|
KHP-25 |
M10-12.9 |
60 |
|
KHP-32 |
M12-12.9 |
110 |
|
KHP-40 |
M16-12.9 |
300 |
|
KHP-50 |
M20-12.9 |
600 | |
